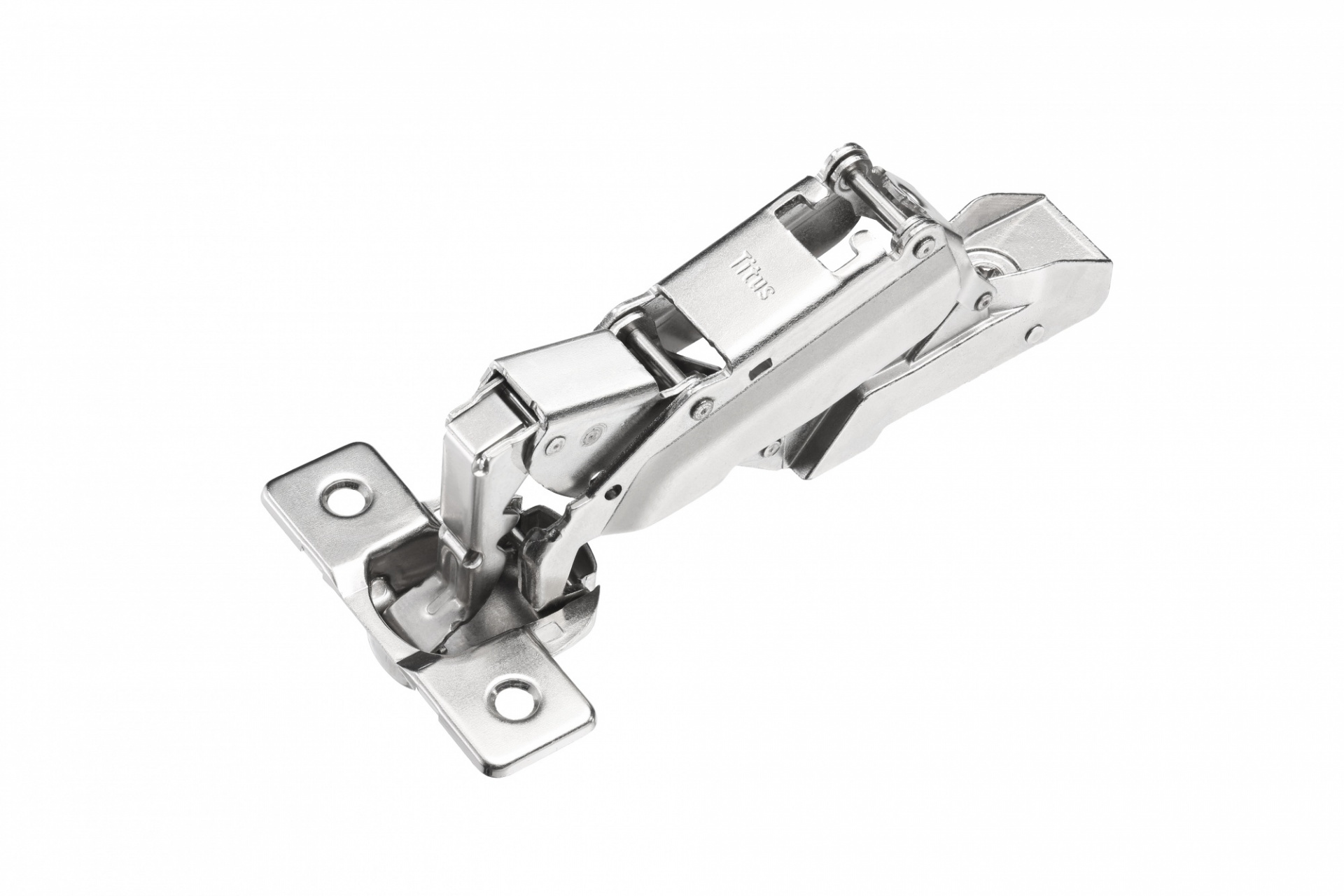

T-type 170 9mm Hinge
::
Quantity:
- For wooden doors
- Hinge on plate mounting system: '3Way' 'snap-on'
- Cranking [mm]: 9
- Depth adjustment [mm]: +4/-1mm
- Drilling diameter for hinge cup [mm]: 35 mm
- Height adjustment [mm]: +2 / -2 mm
- Mounting: 3Way 'snap-on'
- Material: Steel & Zinc
- Side adjustment [mm]: +3/-1mm
- Opening angle [°]: 170
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Cup type | Unit of Measure | Min. Order Qty | Interaxis [mm] | Mounting plate type | Features | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|---|
| 702.0GK0.054.00 | Screw-on ready | Each | 1 | 45 / 9.5 | Screw-on ready | Add-on Soft Closing | $ 5.59 | Back Order | ||
| 702.0GK4.054.00 | Easy-fix | Each | 1 | 45 / 9.5 | Easy-fix | Add-on Soft Closing | $ 6.41 | In stock | ||
| 702.0GK1.054.00 | Machine insertion ready | Each | 1 | 45 / 9.5 | Machine insertion ready | Add-on Soft Closing | $ 6.06 | Limited stock |
