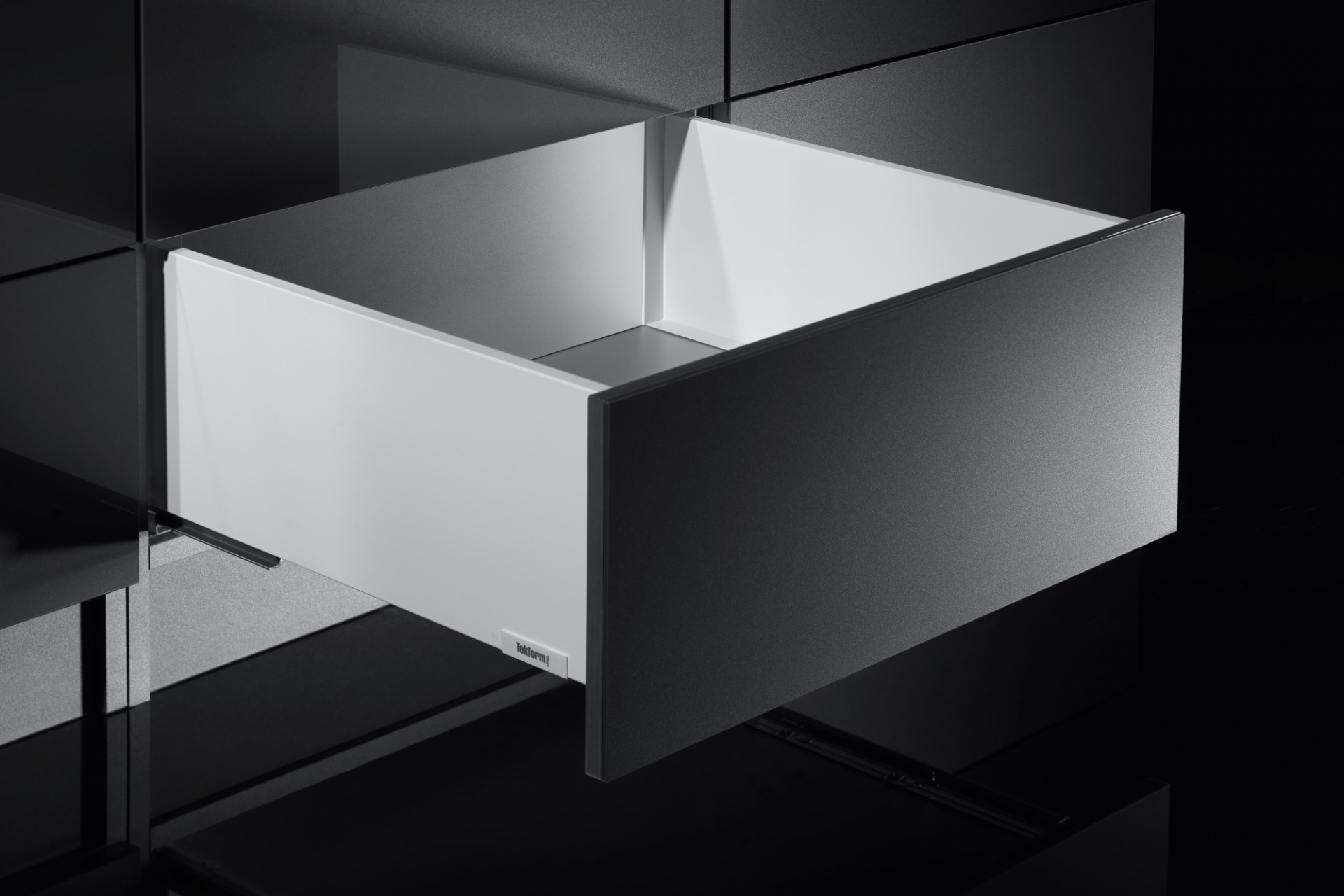

Slimline Touch SDWD-T 182
:::
Quantity:
- For use with the SDWD-T Push to Open mechanism for a complete touch opening drawer system
- Integrated SDWD-T activator in the drawer runners
- Narrow sides for a sleek look and efficient utilisation of drawer space
- Full extension 40kg runners
- Two colour options
- Accessories to customise the drawer
- Titus 'EasyFix' connectors
- Integrated Titus 'Confident Close' damping system
- Intuitive installation and adjustment
- Quality tested and certified by FIRA Level H and CATAS
- Screw-Fix Front Brackets available.
- Screws not included
- One set consists of: SDWD-T mechanism (2 pcs), Drawer sides (2 pcs), Drawer runner (2 pcs), EasyFix front connectors (2 pcs), Rear connectors (2 pcs) & Decorative covers (2 pcs)
- Closing: Integrated soft close
- Extension: Full Extension
- Height adjustment: +2 / -2 mm
- Height (mm): 182
- Weight capacity: 40kg
- Side adjustment: +/-1mm
- Minimal required height space (mm): 230
- Wooden back panel thickness (mm): 16
- Wooden bottom panel thickness (mm): 16
SDWD T Brochure
DownloadProduct Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Front connector type | Unit of Measure | Finish | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 655.8Z62.150.00.K | EasyFix | Each | White | 1 | 450 | $ 100.98 | Limited stock | ||
| 655.8Z61.150.00.K | EasyFix | Each | White | 1 | 400 | $ 97.70 | Limited stock | ||
| 655.8Z64.150.00.K | EasyFix | Each | White | 1 | 550 | $ 108.45 | In stock |
