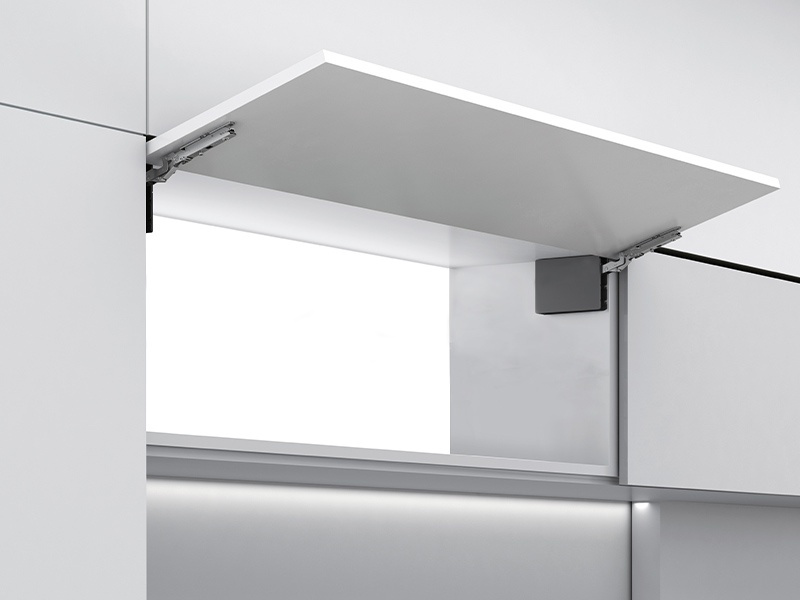

Nebo Overhead Lifter
Quantity:
- Double buffer function stops at any angle once the door opens above above 52°
- Integrated soft close damping with adjustment feature
- 6-way door adjustment with +/-2mm side and height adjustment and +/- 1.5mm tilt adjustment
- Minimum cabinet depth: 200mm
- Cabinet widths up to 1200mm
- Door heights: 300mm to 650mm
- If capacity overlaps two lifters, choose the stronger lifter
- Weight capacity: 2.8kg - 7kg
Nebo Lifters Install Guide
DownloadProduct Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Unit of Measure | Max opening angle (°) | Weight capacity | Min. Order Qty | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|
| 606.8L10.200.300 | Set | 107 | 2.8kg - 7kg | 1 | $ 75.41 | In stock | ||
| 606.8L10.400.400 | Set | 107 | 8kg - 12kg | 1 | $ 75.41 | In stock | ||
| 606.8L10.300.350 | Set | 107 | 4.5kg - 10kg | 1 | $ 75.41 | In stock |
