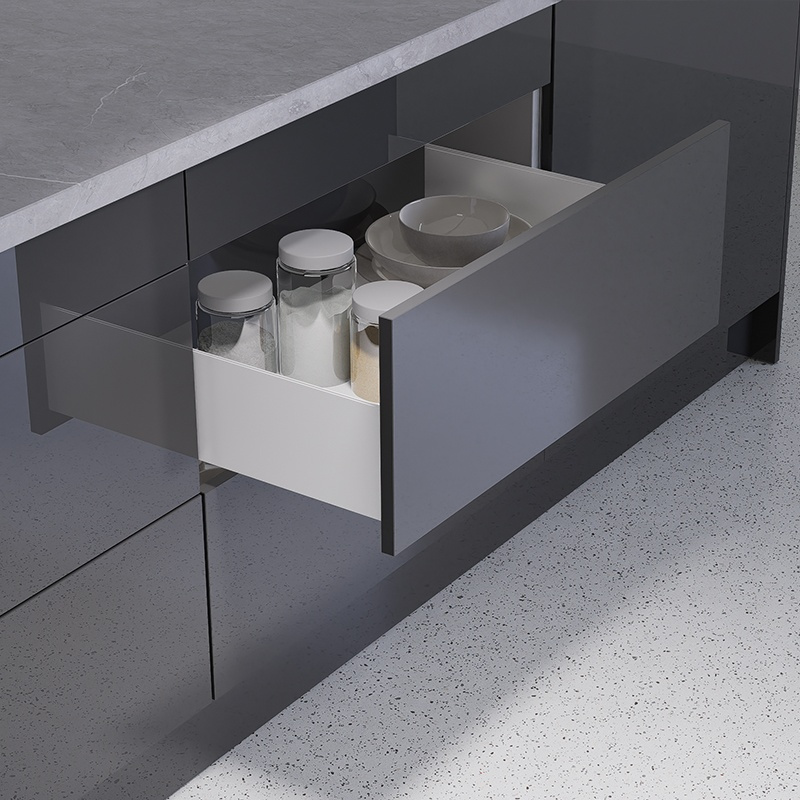

114mm Vitek Thin Wall Drawer Single Extension
:::
Quantity:
- Single extension soft close undermount runners
- 25kg drawer capacity
- 4-way adjustment
- Minimum space required: 151mm
- Wooden back panel thickness: max. 19mm
- Wooden bottom panel thickness: max. 19mm
- Screw-in front connection compatible and supplied with knock-in dowels.
- Closing: Integrated soft close
- Extension: Single Extension
- Height adjustment: +/-2 mm
- Finish: White
- Height (mm): 114mm
- Weight capacity: 25kg
- Side adjustment: +1.5/-1.5mm
- Minimal required height space (mm): 151
- Wooden back panel thickness (mm): 19
- Wooden bottom panel thickness (mm): 19
- Capacity (volume in g): 260
- pd_LS_a7: Metal sides
- pd_LS_a8: Steel
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Extension | Unit of Measure | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|
| 657.8B25.150.00 | Single Extension | Set | 1 | 250 | $ 14.74 | In stock | ||
| 657.8B30.150.00 | Single Extension | Set | 1 | 300 | $ 15.75 | In stock | ||
| 657.8B35.150.00 | Single Extension | Set | 1 | 350 | $ 16.66 | In stock | ||
| 657.8B40.150.00 | Single Extension | Set | 1 | 400 | $ 17.76 | In stock | ||
| 657.8B45.150.00 | Single Extension | Set | 1 | 450 | $ 18.78 | In stock | ||
| 657.8B50.150.00 | Single Extension | Set | 1 | 500 | $ 19.83 | In stock | ||
| 657.8B55.150.00 | Single Extension | Set | 1 | 550 | $ 20.83 | In stock |
